Pro

The Platform Classic is still available via special order.

The Pro is Ideum’s most powerful high-performance touchscreen table. It has a workstation computer and options for expandability. Quality built with an all-aluminum frame, it has a patented design and uses the best available commercial components. The Pro is available with 49", 55", 65", 65" 8K, and 75" 8K touch display configurations.

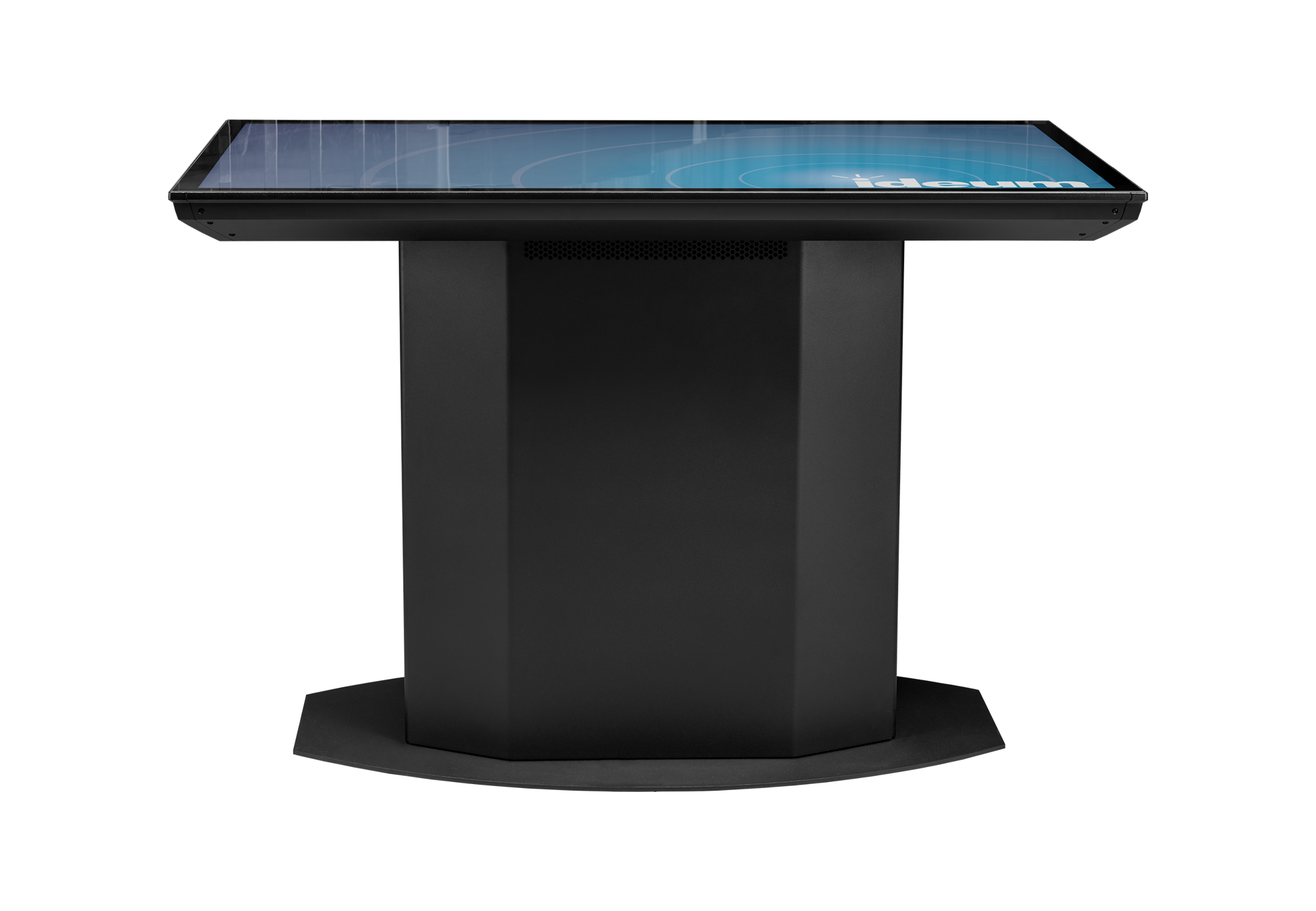

Pro Touchscreen Table

The Pro touchscreen table has a 4K Ultra HD LG commercial display rated for 24/7 operation and bezel-less, projected capacitive touch technology from TES (formerly 3M™) with support for 80 simultaneous touch points.

Interactive Touchscreen Software

All Ideum hardware comes with Windows 11 Professional pre-installed on the system. A wide range of Windows software optimized for touch can be used with the Pro, or custom interactive software can be developed. It is also compatible with Ideum's Tangible Engine object recognition software.

Powerful Processing

The Pro includes a powerful, full-size integrated PC with the latest generation Intel Core processor and dedicated NVIDIA graphics, as well as a built-in Yamaha sound system. The PC can be upgraded to our Ultimate build, which includes a powerful upgrade to the processor, graphics, storage, and memory, and includes a full-sized motherboard for even more upgrade power.

Custom Hardware

We can produce our hardware in a variety of custom colors, finishes, and logo treatments. Possible add-ons include casters, headphones, headsets, and proximity sensors. We also build completely custom units. Contact our sales group for more details.

Engineered for Public Use

All of Ideum’s touchscreen displays and tables are built out of aircraft-grade aluminum. Our systems have lockable access ports, and push-button startup, and are engineered to withstand heavy use in public space

Made in the USA of U.S. and Imported Parts

Ideum touch tables and displays are designed and built in the USA. We back our products with a three-year warranty and provide timely and professional support and service when necessary. The same people who build our tables provide our support. The Pro touch table is compliant with the Trade Agreements Act (TAA) and can be customized for use in secure spaces.

Subscription Options

The Tasting Table comes complete with a three-year Basic subscription allowing the owner to host up to two unique tastings (which can be re-edited). All subscribers will receive updates as the Wine Experience software continues to add new features.  A fourth year of Premium or Ultimate subscriptions can be purchased, which include an additional year hardware warranty extension.

Basic

Perfect for a small winery (with only still wines). Two included tastings can be edited and re-edited to allow for new tastings and vintages.

Premium

Designed for a medium to large winery, wine bar, wine association, wine shop, visitor associations, culinary school, or restaurant. Up to 15 unique tastings can be saved.

Ultimate

Made for heavy use by a large winery, wine bar, wine association, wine stores,wine distributors, visitor association, culinary school, event company, resort, or cruise ship. Up to 100 unique tastings can be saved.
Download the Spec Sheet to learn more about the Tasting Table subscription options.
A woman holding a glass of white wine, exploring her wine variety using Ideum's tasting table software.
Sensory Dining logo.
The Wine Experience is a complete software package designed specifically for the Tasting Table.
This unique software package allows up to four guests to participate in an interactive tasting. Software owners can add wines and create custom tasting experiences using our cloud-based content management system (CMS). An object-recognition system identifies individual wines with custom coasters. Guests can share what they taste via an interactive flavor wheel. Some subscriptions include the Sparkling Experience, which works in a similar way, but has its own custom aroma wheel.

The Wine Experience revolutionizes the tasting experience. Below are some of the included features. You can stay up-to-date with the latest developments at: sensorydining.com.
People interacting with The Wine Experience software on an Ideum tasting table.

Features

Aroma Wheel

Our custom tasting wheel has 60 tasting notes that visitors can select when tasting a wine. Allowing guests to express the flavors they are experiencing in their tasting experience.

Attract Mode

Attract visitors to the Wine Experience with a 3D scene or video introduction. Transitions into customizable letter from the organization to welcome guests to the tasting experience.

Branding and Style

Personalize color theme, font, and add your logo. Fully customizable sections to communicate with guests and insert information about your company’s initiatives.

CMS & Analytics

Update and change content through the cloud-based content management system (CMS). Retrieve guest’s tasting notes from the CMS to learn how they experience your wines.

Tasting Tips

An illustrated and animated introduction to how to taste wines. Tasting tips can be skipped by experienced wine tasters, making the experience suited for beginners and experts.

Wine Identification

Through tangible coasters, the Wine Experience can identify up to eight individual wines. Coasters “unlock” the tasting experience allowing owners to control access to experience.

Wine Profile

Each tasting ends with an individual profile of the wine with tasting notes by the winery. Allowing guests to compare their tasting experience to the notes of the winemaker.

QR Codes

The Wine Experience includes QR codes that link to website and webshop of the winemaker, allowing guests to find more information and directly purchase the wine they tasted.

Standard Sizes

Special Formats

Standard Sizes

Special Formats

49"
55"
65"
65" 8K
75" 8K
Weight
230 LBS / 104 KG
Ship Weight
390 LBS / 177 KG
With Travel Case
420 LBS / 190 KG

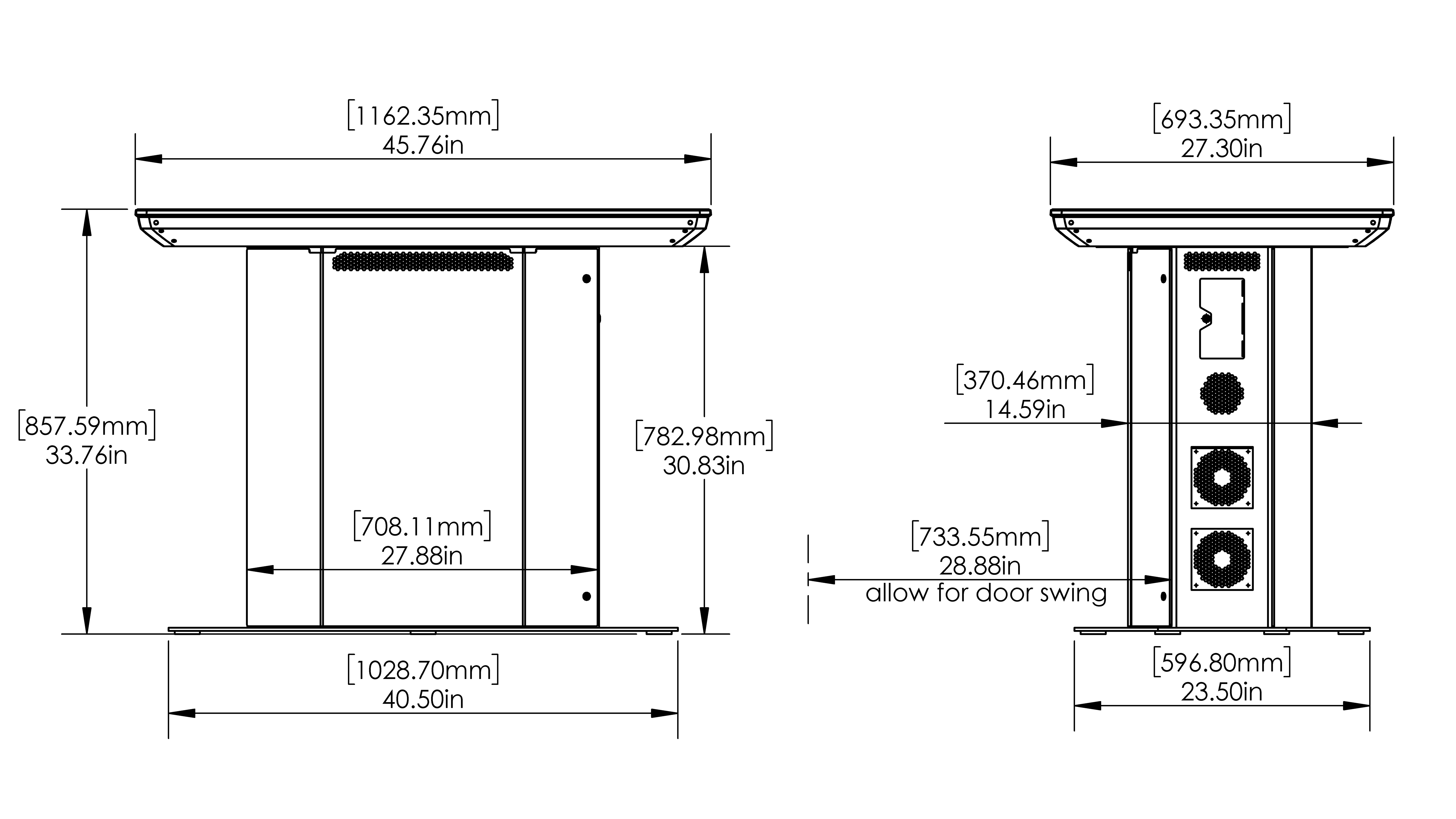

Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 49” diagonal, strengthened, anti-stiction, 4mm glass surface
  • TES /3M projected capacitive touch sensor
  • ±5ms touch response time
  • 80 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
Integrated System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Stereo amplifier with two 90W Yamaha speakers

Performance

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB NVMe M.2 SSD

Ultimate

  • Intel 15th Gen Core Ultra 9 285K processor
  • NVIDIA GeForce RTX 5090 32GB graphics card
  • 192GB DDR5 RAM
  • Dual 2TB NVMe M.2 SSD
  • Full ATX motherboard with additional PCIe slots
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
240 LBS / 109 KG
Ship Weight
400 LBS / 181 KG
With Travel Case
425 LBS / 193 KG

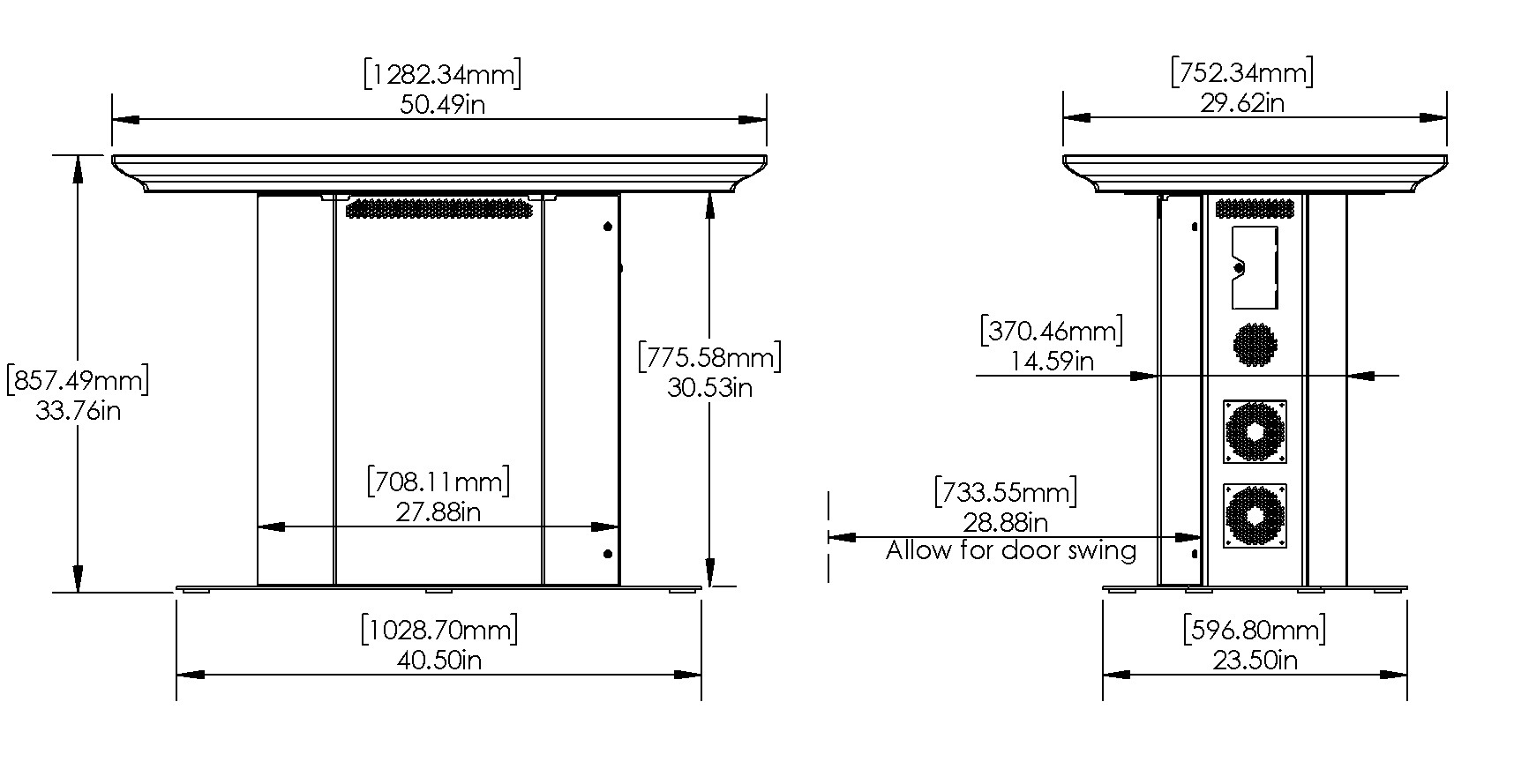

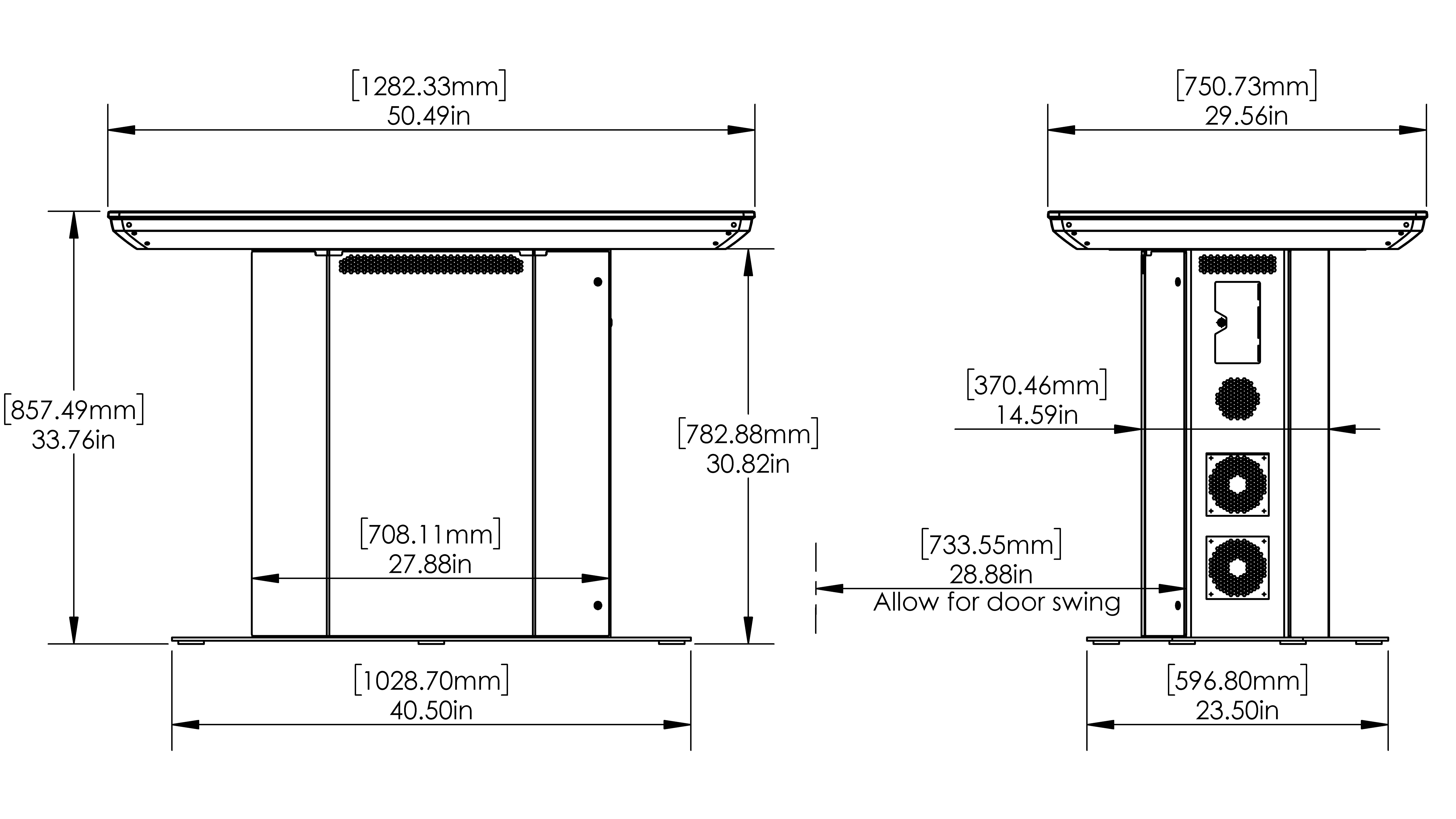

Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 55” diagonal, strengthened, anti-stiction, 4mm glass surface
  • TES /3M projected capacitive touch sensor
  • ±5ms touch response time
  • 80 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
Integrated System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Stereo amplifier with two 90W Yamaha speakers

Performance

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB NVMe M.2 SSD

Ultimate

  • Intel 15th Gen Core Ultra 9 285K processor
  • NVIDIA GeForce RTX 5090 32GB graphics card
  • 192GB DDR5 RAM
  • Dual 2TB NVMe M.2 SSD
  • Full ATX motherboard with additional PCIe slots
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
286 LBS / 130 KG
Ship Weight
491 LBS / 223 KG
With Travel Case
517 LBS / 234 KG

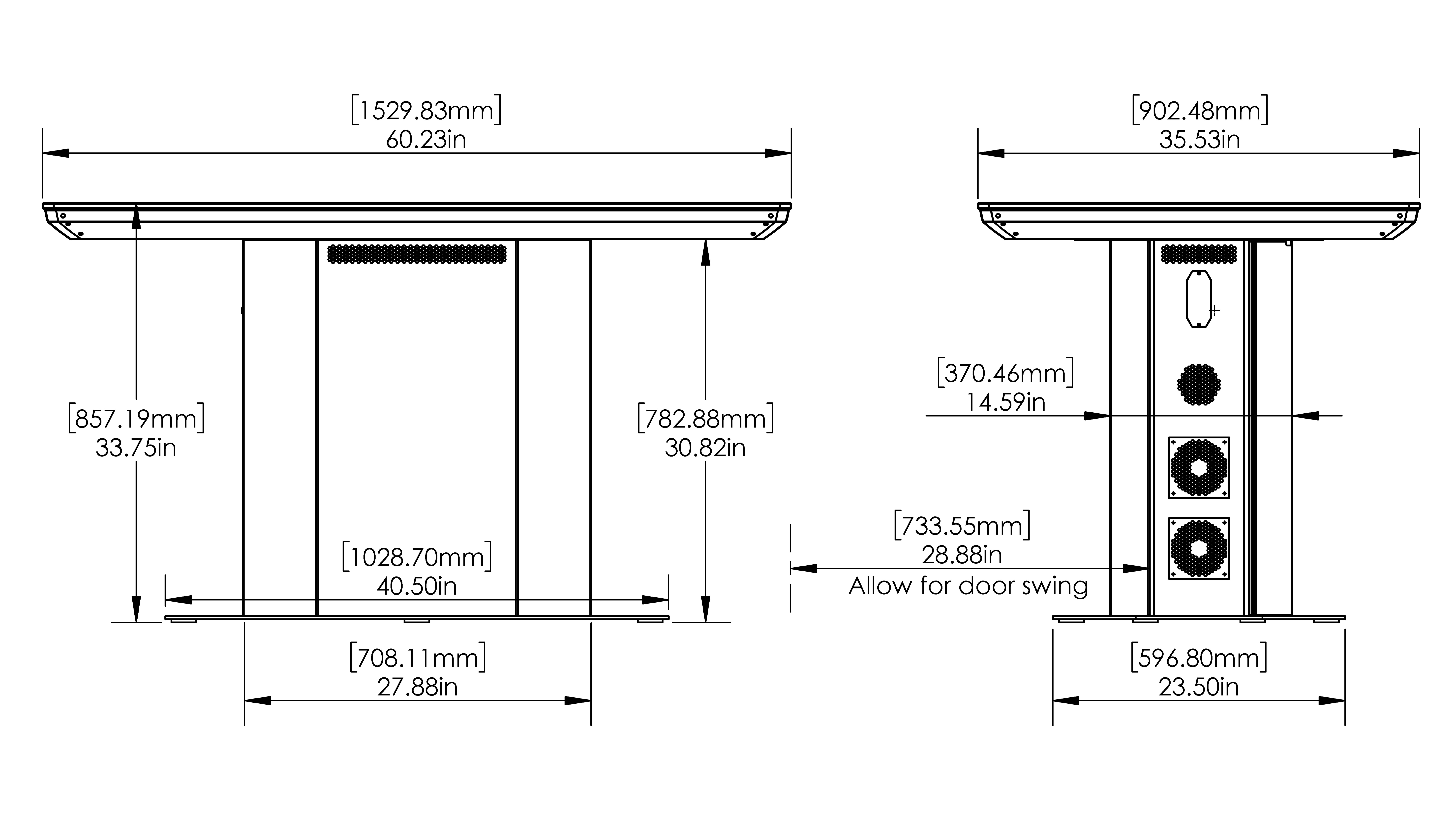

Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 65” diagonal, strengthened, anti-stiction, 4mm glass surface
  • TES /3M projected capacitive touch sensor
  • ±5ms touch response time
  • 80 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
Integrated System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Stereo amplifier with two 90W Yamaha speakers

Performance

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB NVMe M.2 SSD

Ultimate

  • Intel 15th Gen Core Ultra 9 285K processor
  • NVIDIA GeForce RTX 5090 32GB graphics card
  • 192GB DDR5 RAM
  • Dual 2TB NVMe M.2 SSD
  • Full ATX motherboard with additional PCIe slots
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
286 LBS / 130 KG
Ship Weight
491 LBS / 223 KG
With Travel Case
517 LBS / 234 KG
Interactive Display
  • 8K (7,680 x 4,320) LG QNED mini LED display
  • 65” diagonal, strengthened, anti-stiction, 4mm glass surface
  • TES /3M projected capacitive touch sensor
  • ±5 mstouch response time
  • 80 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
Integrated System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Stereo amplifier with two 90W Yamaha speakers

Performance

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB NVMe M.2 SSD

Ultimate

  • Intel 15th Gen Core Ultra 9 285K processor
  • NVIDIA GeForce RTX 5090 32GB graphics card
  • 192GB DDR5 RAM
  • Dual 2TB NVMe M.2 SSD
  • Full ATX motherboard with additional PCIe slots
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
306 LBS / 139 KG
Ship Weight
531 LBS / 241 KG
With Travel Case
567 LBS / 257 KG

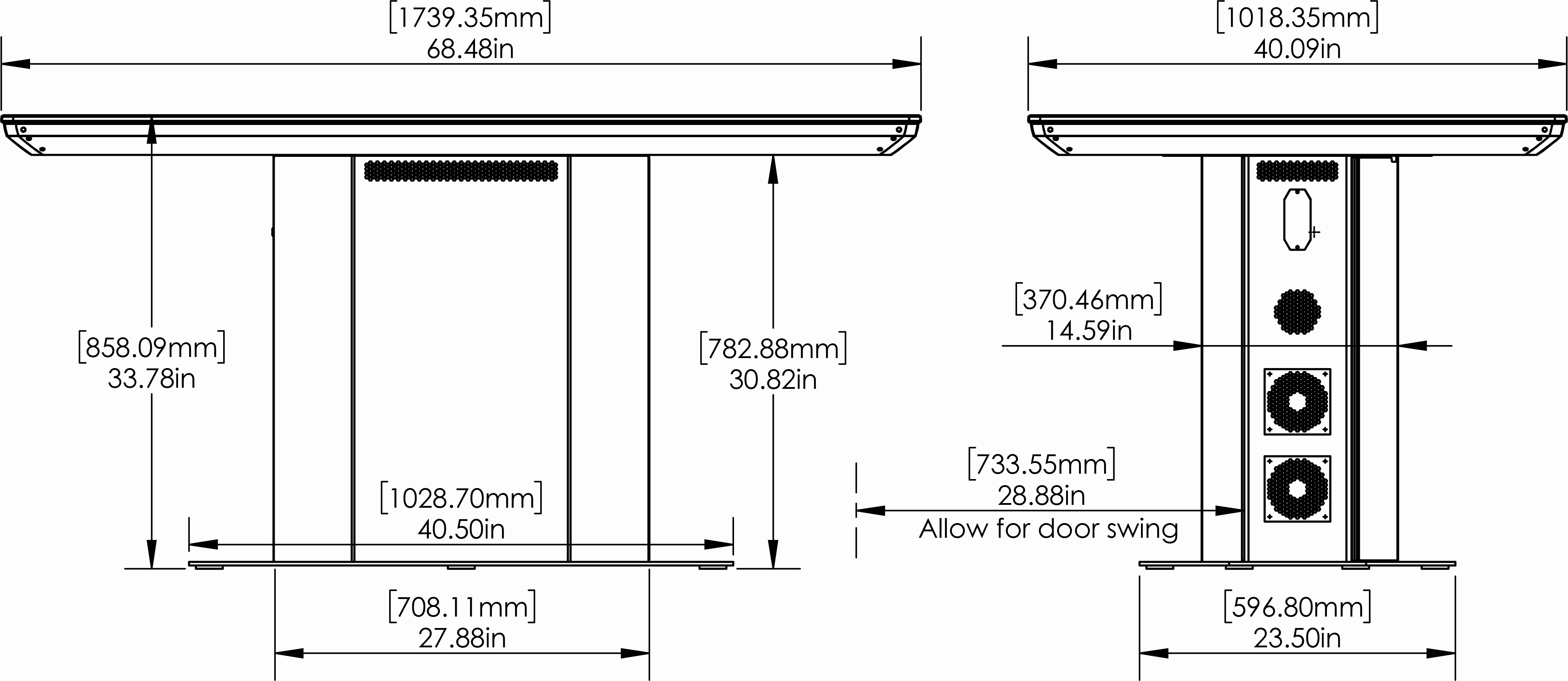

Interactive Display
  • 8K (7,680 x 4,320) LG QNED mini LED display
  • 75” diagonal, strengthened, anti-stiction, 5mm glass surface
  • Displax projected capacitive touch sensor
  • ±5ms touch response time
  • 40 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
Integrated System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Stereo amplifier with two 90W Yamaha speakers

Performance

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB NVMe M.2 SSD

Ultimate

  • Intel 15th Gen Core Ultra 9 285K processor
  • NVIDIA GeForce RTX 5090 32GB graphics card
  • 192GB DDR5 RAM
  • Dual 2TB NVMe M.2 SSD
  • Full ATX motherboard with additional PCIe slots
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case

Large Formats, Ultrawide, & Stacked/Square Displays

Large Formats, Ultrawide, & Stacked/Square Displays
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case
567 LBS / 257 KG
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case
Photos show standard and in some cases custom configurations. Contact our sales group for more information.
