Drafting II

The Platform Classic is still available via special order.

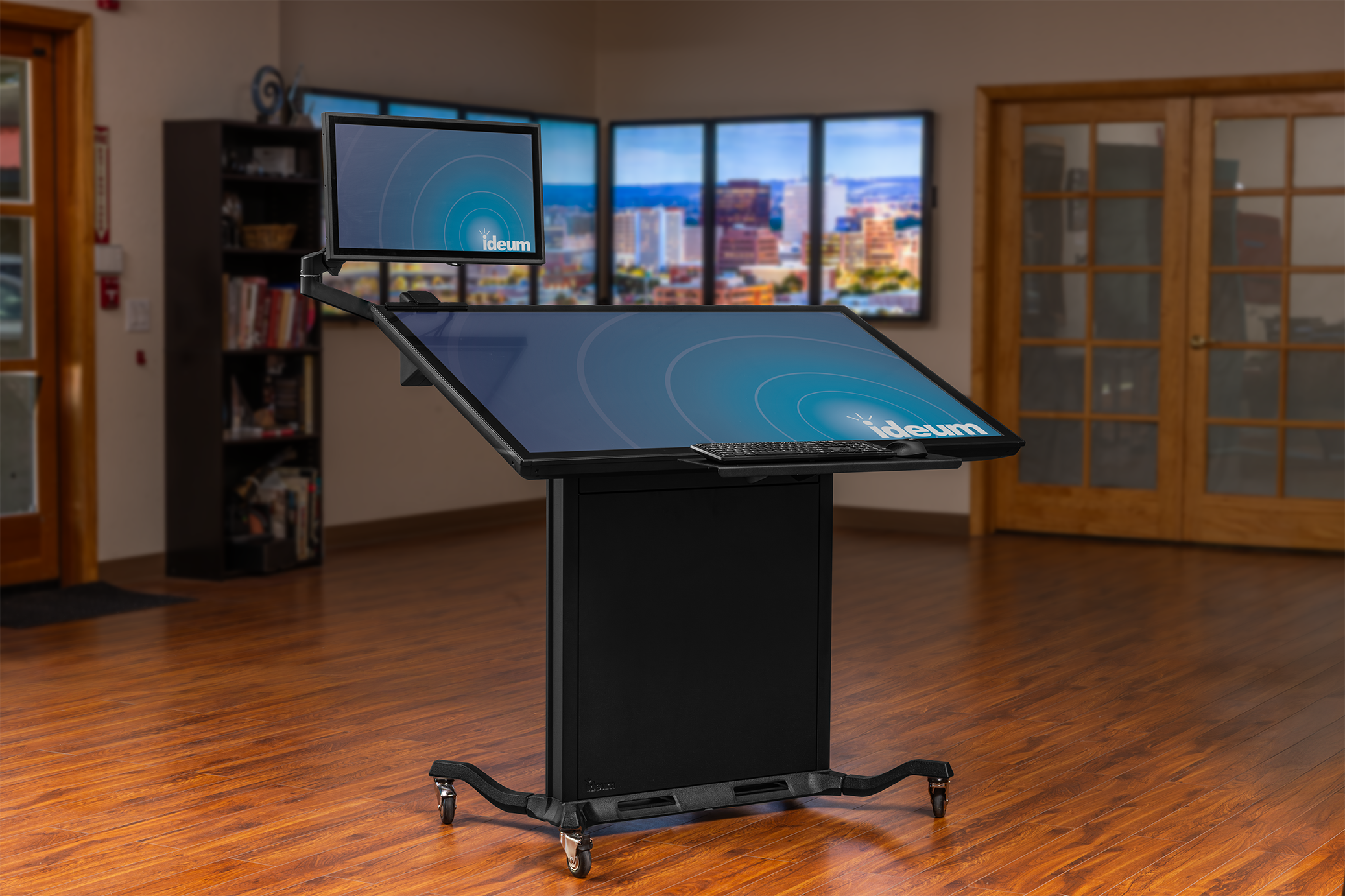

Ideum’s Drafting II Table is a rugged­ized angled touchscreen table available with a 43”, 49”, 55”, or 65” 4K Ultra HD display. This model is used as a locked-down touchscreen kiosk at museums and experience centers or it can be configured with a keyboard tray and casters for studio use as a digital drafting table with AEC software.

Advanced Touch Technology

The 4K Ultra HD LG commercial display at the heart of the 43”, 49", 55", and 65" Drafting II has bezel-less TES (formerly 3M™) projected capacitive touch technology and supports 80 simultaneous touch points. The display is rated for 24/7 operation.

Windows 11 Pro

All Ideum multitouch tables, touchscreen displays (with computers), and interactive kiosks come with Windows 11 Pro. A wide range of Windows software optimized for touch can be used with the Drafting II or custom interactive touchscreen software can be developed.

Powerful Processing

The Drafting II includes an integrated PC with the latest generation Intel Core processor and dedicated NVIDIA graphics. The standard PC can be upgraded to a performance model that is ideal for resource-heavy and graphically demanding applications.

‍

Custom Hardware and Accessories

Our hardware comes standard with an elegant and durable deep slate finish, but we can also produce units with a wide variety of custom finishes, colors, and logos. We offer casters and an adjustable keyboard that can be added to make the Drafting II a powerful digital drafting workstation. We can customize the table for public spaces with headsets, motion and camera attachments, and other enhancements.

Engineered for Multiple Uses

Our touchscreen tables and displays are fabricated from aircraft-grade aluminum. Built for demanding environments, our systems offer push-button startup and USB connectivity in a lockable access port. They can also be used at home, in a studio, or a worksite setting as a digital plan review table for architecture, engineering, and construction software.

Made in the USA of U.S. and Imported Parts

Designed and built in the USA, Ideum’s touch tables and displays are backed with a three-year warranty. We provide responsive support and service from the people who actually build our products. The Drafting II is compliant with the Trade Agreements Act (TAA) and can be customized for use in secure spaces.

Subscription Options

The Tasting Table comes complete with a three-year Basic subscription allowing the owner to host up to two unique tastings (which can be re-edited). All subscribers will receive updates as the Wine Experience software continues to add new features.  A fourth year of Premium or Ultimate subscriptions can be purchased, which include an additional year hardware warranty extension.

Basic

Perfect for a small winery (with only still wines). Two included tastings can be edited and re-edited to allow for new tastings and vintages.

Premium

Designed for a medium to large winery, wine bar, wine association, wine shop, visitor associations, culinary school, or restaurant. Up to 15 unique tastings can be saved.

Ultimate

Made for heavy use by a large winery, wine bar, wine association, wine stores,wine distributors, visitor association, culinary school, event company, resort, or cruise ship. Up to 100 unique tastings can be saved.
Download the Spec Sheet to learn more about the Tasting Table subscription options.
A woman holding a glass of white wine, exploring her wine variety using Ideum's tasting table software.
Sensory Dining logo.
The Wine Experience is a complete software package designed specifically for the Tasting Table.
This unique software package allows up to four guests to participate in an interactive tasting. Software owners can add wines and create custom tasting experiences using our cloud-based content management system (CMS). An object-recognition system identifies individual wines with custom coasters. Guests can share what they taste via an interactive flavor wheel. Some subscriptions include the Sparkling Experience, which works in a similar way, but has its own custom aroma wheel.

The Wine Experience revolutionizes the tasting experience. Below are some of the included features. You can stay up-to-date with the latest developments at: sensorydining.com.
People interacting with The Wine Experience software on an Ideum tasting table.

Features

Aroma Wheel

Our custom tasting wheel has 60 tasting notes that visitors can select when tasting a wine. Allowing guests to express the flavors they are experiencing in their tasting experience.

Attract Mode

Attract visitors to the Wine Experience with a 3D scene or video introduction. Transitions into customizable letter from the organization to welcome guests to the tasting experience.

Branding and Style

Personalize color theme, font, and add your logo. Fully customizable sections to communicate with guests and insert information about your company’s initiatives.

CMS & Analytics

Update and change content through the cloud-based content management system (CMS). Retrieve guest’s tasting notes from the CMS to learn how they experience your wines.

Tasting Tips

An illustrated and animated introduction to how to taste wines. Tasting tips can be skipped by experienced wine tasters, making the experience suited for beginners and experts.

Wine Identification

Through tangible coasters, the Wine Experience can identify up to eight individual wines. Coasters “unlock” the tasting experience allowing owners to control access to experience.

Wine Profile

Each tasting ends with an individual profile of the wine with tasting notes by the winery. Allowing guests to compare their tasting experience to the notes of the winemaker.

QR Codes

The Wine Experience includes QR codes that link to website and webshop of the winemaker, allowing guests to find more information and directly purchase the wine they tasted.

Standard Sizes

Special Formats

Standard Sizes

Special Formats

43"
49"
55"
55" Optically Bonded
65"
Weight
145 LBS / 66 KG
Ship Weight
280 LBS / 127 KG
With Travel Case
385 LBS / 175 KG
Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 43” diagonal, strengthened, anti-stiction, 4mm glass surface
  • TES /3M™ projected capacitive touch sensor
  • ±5 ms touch response time
  • 80 touch points with palm rejection
  • Native contrast ratio: 1100:1
  • 500 nits luminance
Integrated System
  • Single push-button power
  • Lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • (2) 10W Integrated speakers

Standard

  • Intel 15th Gen Core Ultra 5 245K processor
  • NVIDIA RTX A2000 Ada Generation 16GB graphics card
  • 256GB M.2 NVMe SSD
  • 16GB DDR5 RAM

Performance

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 Ada Generation 20GB graphics card
  • Dual 256GB M.2 NVMe SSD
  • 32GB DDR5 RAM

Ultimate

  • Intel 15th Gen Core Ultra 9 285K processor
  • NVIDIA GeForce RTX 5090 32GB graphics card
  • 2TB M.2 NVMe SSD
  • 64GB DDR5 RAM
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI Output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
155 LBS / 71 KG
Ship Weight
320 LBS / 146 KG
With Travel Case
390 LBS / 177 KG
Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 49” diagonal, strengthened, anti-stiction, 4mm glass surface
  • TES /3M™ projected capacitive touch sensor
  • ±5 ms touch response time
  • 80 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
Integrated System
  • Push-button power
  • Lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • (2) 10W Integrated speakers

Standard

  • Intel 15th Gen Core Ultra 5 245K processor
  • NVIDIA RTX A2000 Ada Generation 16GB graphics card
  • 256GB M.2 NVMe SSD
  • 16GB DDR5 RAM

Performance

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 Ada Generation 20GB graphics card
  • Dual 256GB M.2 NVMe SSD
  • 32GB DDR5 RAM

Ultimate

  • Intel 15th Gen Core Ultra 9 285K processor
  • NVIDIA GeForce RTX 5090 32GB graphics card
  • 2TB M.2 NVMe SSD
  • 64GB DDR5 RAM
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
170 LBS / 78 KG
Ship Weight
345 LBS / 157 KG
With Travel Case
410 LBS / 186 KG
Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 55” diagonal, strengthened, anti-stiction, 4mm glass surface
  • TES /3M™ projected capacitive touch sensor
  • ±5 ms touch response time
  • 80 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
Integrated System
  • Push-button power
  • Lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • (2) 10W Integrated speakers

Standard

  • Intel 15th Gen Core Ultra 5 245K processor
  • NVIDIA RTX A2000 Ada Generation 16GB graphics card
  • 256GB M.2 NVMe SSD
  • 16GB DDR5 RAM

Performance

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 Ada Generation 20GB graphics card
  • Dual 256GB M.2 NVMe SSD
  • 32GB DDR5 RAM

Ultimate

  • Intel 15th Gen Core Ultra 9 285K processor
  • NVIDIA GeForce RTX 5090 32GB graphics card
  • 2TB M.2 NVMe SSD
  • 64GB DDR5 RAM
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
175 LBS / 79 KG
Ship Weight
350 LBS / 159 KG
With Travel Case
415 LBS / 188 KG
Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 55” diagonal, strengthened, anti-stiction, 4mm glass surface
  • Optically bonded sensor and LCD
  • TES /3MTM projected capacitive touch sensor
  • ±5 ms touch response time
  • 80 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
Integrated System
  • Push-button power
  • Lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • (2) 10W Integrated speakers

Standard

  • Intel 15th Gen Core Ultra 5 245K processor
  • NVIDIA RTX A2000 Ada Generation 16GB graphics card
  • 256GB M.2 NVMe SSD
  • 16GB DDR5 RAM

Performance

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 Ada Generation 20GB graphics card
  • Dual 256GB M.2 NVMe SSD
  • 32GB DDR5 RAM

Ultimate

  • Intel 15th Gen Core Ultra 9 285K processor
  • NVIDIA GeForce RTX 5090 32GB graphics card
  • 2TB M.2 NVMe SSD
  • 64GB DDR5 RAM

Connectivity

  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
205 LBS / 93 KG
Ship Weight
385 LBS / 175 KG
With Travel Case
492 LBS / 224 KG
Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 65” diagonal, strengthened, anti-stiction, 4mm glass surface
  • TES /3M™ projected capacitive touch sensor
  • ±5 ms touch response time
  • 80 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
Integrated System
  • Push-button power
  • Lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • (2) 10W Integrated speakers

Standard

  • Intel 15th Gen Core Ultra 5 245K processor
  • NVIDIA RTX A2000 Ada Generation 16GB graphics card
  • 256GB M.2 NVMe SSD
  • 16GB DDR5 RAM

Performance

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 Ada Generation 20GB graphics card
  • Dual 256GB M.2 NVMe SSD
  • 32GB DDR5 RAM

Ultimate

  • Intel 15th Gen Core Ultra 9 285K processor
  • NVIDIA GeForce RTX 5090 32GB graphics card
  • 2TB M.2 NVMe SSD
  • 64GB DDR5 RAM

Connectivity

  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case

Large Formats, Ultrawide, & Stacked/Square Displays

Large Formats, Ultrawide, & Stacked/Square Displays
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case
492 LBS / 224 KG
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case
Photos show standard and in some cases custom configurations. Contact our sales group for more information.
