Presenter

The Platform Classic is still available via special order.

The Ideum Presenter is a ruggedized touchscreen display available in standard sizes: 43”, 49”, 55”, & 65" as well as large format touchscreens and other form factors such as the 34" 5K Ultrawide, 55" optically bonded, 65" and 75" 8K, and 86". The Presenter has an all-aluminum frame and it uses the best available commercial components from TES / 3M™, LG, Displax, and Zytronic. All Ideum Presenter touchscreen displays are available as open-frame Inline touch screens for integration into custom cabinetry and exhibits.

Projected Capacitive Touch

Ideum Presenter touchscreen monitors feature 4K Ultra HD commercial LG displays (5K for the 34", 8K for the 65" and 75") with bezel-less, projected capacitive (PCAP) touch technology from TES (formerly 3M™), Displax and Zytronic, and support 40 to 80 simultaneous touchpoints, depending on the size.

Interactive Touchscreen Software

When purchased with the optional integrated computer, the Presenter will include Windows 11 Professional pre-installed on the system. A wide range of Windows software optimized for touch can be used with the Presenter, or custom interactive touchscreen software can be developed.

Optional Integrated PC

The Presenter offers an optional integrated PC with the latest generation Intel Core processor and dedicated NVIDIA graphics. The standard PC can be upgraded to a performance model that is ideal for resource-heavy and graphically demanding applications.

Custom Hardware

We can produce our hardware in a variety of custom colors, finishes, and logo treatments. Possible add-ons include casters, headphones, headsets, and proximity sensors. We also build completely custom units. Contact our sales group for more details.

Engineered for Public Use

All of Ideum’s touchscreen display cases and touch table chassis are built out of aircraft-grade aluminum. Our systems have lockable access ports, push-button startup, and are engineered to withstand heavy use in public spaces. Each Presenter includes wall-mounting hardware rated for up to 280 lbs.

Made in the USA of U.S. and Imported Parts

Ideum is an American-owned company. Our touch tables and interactive touch screens are designed and built in the USA from domestic and imported parts. We back our products with a three-year warranty and when necessary provide timely and professional support and service. The same people who build our tables provide our support.

Subscription Options

The Tasting Table comes complete with a three-year Basic subscription allowing the owner to host up to two unique tastings (which can be re-edited). All subscribers will receive updates as the Wine Experience software continues to add new features.  A fourth year of Premium or Ultimate subscriptions can be purchased, which include an additional year hardware warranty extension.

Basic

Perfect for a small winery (with only still wines). Two included tastings can be edited and re-edited to allow for new tastings and vintages.

Premium

Designed for a medium to large winery, wine bar, wine association, wine shop, visitor associations, culinary school, or restaurant. Up to 15 unique tastings can be saved.

Ultimate

Made for heavy use by a large winery, wine bar, wine association, wine stores,wine distributors, visitor association, culinary school, event company, resort, or cruise ship. Up to 100 unique tastings can be saved.
Download the Spec Sheet to learn more about the Tasting Table subscription options.
A woman holding a glass of white wine, exploring her wine variety using Ideum's tasting table software.
Sensory Dining logo.
The Wine Experience is a complete software package designed specifically for the Tasting Table.
This unique software package allows up to four guests to participate in an interactive tasting. Software owners can add wines and create custom tasting experiences using our cloud-based content management system (CMS). An object-recognition system identifies individual wines with custom coasters. Guests can share what they taste via an interactive flavor wheel. Some subscriptions include the Sparkling Experience, which works in a similar way, but has its own custom aroma wheel.

The Wine Experience revolutionizes the tasting experience. Below are some of the included features. You can stay up-to-date with the latest developments at: sensorydining.com.
People interacting with The Wine Experience software on an Ideum tasting table.

Features

Aroma Wheel

Our custom tasting wheel has 60 tasting notes that visitors can select when tasting a wine. Allowing guests to express the flavors they are experiencing in their tasting experience.

Attract Mode

Attract visitors to the Wine Experience with a 3D scene or video introduction. Transitions into customizable letter from the organization to welcome guests to the tasting experience.

Branding and Style

Personalize color theme, font, and add your logo. Fully customizable sections to communicate with guests and insert information about your company’s initiatives.

CMS & Analytics

Update and change content through the cloud-based content management system (CMS). Retrieve guest’s tasting notes from the CMS to learn how they experience your wines.

Tasting Tips

An illustrated and animated introduction to how to taste wines. Tasting tips can be skipped by experienced wine tasters, making the experience suited for beginners and experts.

Wine Identification

Through tangible coasters, the Wine Experience can identify up to eight individual wines. Coasters “unlock” the tasting experience allowing owners to control access to experience.

Wine Profile

Each tasting ends with an individual profile of the wine with tasting notes by the winery. Allowing guests to compare their tasting experience to the notes of the winemaker.

QR Codes

The Wine Experience includes QR codes that link to website and webshop of the winemaker, allowing guests to find more information and directly purchase the wine they tasted.

Standard Sizes

Special Formats

Standard Sizes

Special Formats

43"
49"
55"
65"
Weight
69 LBS / 31 KG
Ship Weight
174 LBS / 79 KG
With Travel Case
250 LBS / 113 KG
Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 43” diagonal, strengthened, anti-stiction, 4mm glass surface
  • TES /3MTM projected capacitive touch sensor
  • ±5ms touch response time
  • 80 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
  • Wall-mounting hardware rated for 280 lbs
Optional Integrated System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Two 10W integrated speakers

STANDARD

  • Intel 15th Gen Core Ultra 5 245K processor
  • NVIDIA RTX A2000 16GB Ada Generation graphics card
  • 16GB DDR5 RAM
  • 256GB M.2 NVMe SSD

PERFORMANCE

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB M.2 NVMe SSD
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
93 LBS / 42 KG
Ship Weight
205 LBS / 93 KG
With Travel Case
280 LBS / 127 KG
Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 49” diagonal, strengthened, anti-stiction, 4mm glass surface
  • TES /3MTM projected capacitive touch sensor
  • ±5ms touch response time
  • 80 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
  • Wall-mounting hardware rated for 280 lbs
Optional Integrated System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Two 10W integrated speakers

STANDARD

  • Intel 15th Gen Core Ultra 5 245K processor
  • NVIDIA RTX A2000 16GB Ada Generation graphics card
  • 16GB DDR5 RAM
  • 256GB M.2 NVMe SSD

PERFORMANCE

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB M.2 NVMe SSD
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
102 LBS / 46 KG
Ship Weight
225 LBS / 102 KG
With Travel Case
375 LBS / 170 KG
Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 55” diagonal, strengthened, anti-stiction, 4mm glass surface
  • TES /3MTM projected capacitive touch sensor
  • ±5ms touch response time
  • 80 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
  • Wall-mounting hardware rated for 280 lbs
Optional Integrated System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Two 10W integrated speakers

STANDARD

  • Intel 15th Gen Core Ultra 5 245K processor
  • NVIDIA RTX A2000 16GB Ada Generation graphics card
  • 16GB DDR5 RAM
  • 256GB M.2 NVMe SSD

PERFORMANCE

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB M.2 NVMe SSD
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
152 LBS / 69 KG
Ship Weight
302 LBS / 137 KG
With Travel Case
392 LBS / 178 KG
Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 65” diagonal, strengthened, anti-stiction, 4mm glass surface
  • TES /3MTM projected capacitive touch sensor
  • ±5ms touch response time
  • 80 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
  • Wall-mounting hardware rated for 280 lbs
Optional Integrated System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Two 10W integrated speakers

STANDARD

  • Intel 15th Gen Core Ultra 5 245K processor
  • NVIDIA RTX A2000 16GB Ada Generation graphics card
  • 16GB DDR5 RAM
  • 256GB M.2 NVMe SSD

PERFORMANCE

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB M.2 NVMe SSD
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpadDirect access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case
Weight
Ship Weight
With Travel Case

Large Formats, Ultrawide, & Stacked/Square Displays

Large Formats, Ultrawide, & Stacked/Square Displays

28" Stacked/Square
34" 5K
55" Optically Bonded
65" 8K
75" 8K
86"
Dual 49"
Weight
29 LBS / 13 KG
Ship Weight
110 LBS / 50 KG
With Travel Case
Interactive Display
  • SDQHD (2460 x 2880) LG display, 16:18 ratio.
  • 28” diagonal, strengthened, anti-stiction, 4mm glass surface
  • Displax projected capacitive touch sensor
  • ±5ms touch response time
  • 40 touch points with palm rejection
  • Native contrast ratio 1000:1
  • 300 nits luminance
  • Included: wall-mounting hardware rated for 50 lbs
Optional External Computer System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Two 10W integrated speakers

STANDARD

  • Intel 15th Gen Core Ultra 5 245K processor
  • NVIDIA RTX A2000 16GB Ada Generation graphics card
  • 16GB DDR5 RAM
  • 256GB M.2 NVMe SSD

PERFORMANCE

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB M.2 NVMe SSD
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
35 LBS / 16 KG
Ship Weight
116 LBS / 53 KG
With Travel Case
Interactive Display
  • 5K UHD (5120x2160) LG commercial display rated 24/7
  • 34” diagonal, strengthened, anti-stiction, 4mm glass surface
  • Displax projected capacitive touch sensor
  • ±5ms touch response time
  • 40 touch points with palm rejection
  • Native contrast ratio 1200:1
  • 400 nits luminance
  • Wall-mounting hardware rated for 50 lbs
Optional External Computer System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Two 10W integrated speakers

STANDARD

  • Intel 15th Gen Core Ultra 5 245K processor
  • NVIDIA RTX A2000 16GB Ada Generation graphics card
  • 16GB DDR5 RAM
  • 256GB M.2 NVMe SSD

PERFORMANCE

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB M.2 NVMe SSD
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
152 LBS / 69 KG
Ship Weight
302 LBS / 137 KG
With Travel Case
Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 55” diagonal, strengthened, anti-stiction, 4mm glass surface
  • Optically bonded sensor and LCD
  • TES /3MTM projected capacitive touch sensor
  • ±5ms touch response time
  • 80 touch points with palm rejection
  • Native contrast ratio 1100:1
  • 500 nits luminance
  • Wall-mounting hardware rated for 280 lbs
Optional Integrated System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Two 10W integrated speakers

STANDARD

  • Intel 15th Gen Core Ultra 5 245K processor
  • NVIDIA RTX A2000 16GB Ada Generation graphics card
  • 16GB DDR5 RAM
  • 256GB M.2 NVMe SSD

PERFORMANCE

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB M.2 NVMe SSD
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard withintegrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
152 LBS / 69 KG
Ship Weight
302 LBS / 137 KG
With Travel Case
Interactive Display
  • 8K (7,680 x 4,320) LG QNED mini LED display
  • 65” diagonal, strengthened, anti-stiction, 4mm glass surface
  • TES /3MTM projected capacitive touch sensor
  • ±5ms touch response time
  • 80 touch points with palm rejection
  • 500 nits luminance
  • Native contrast ratio 1100:1
  • Wall-mounting hardware rated for 280 lbs
Optional Integrated System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Two 10W integrated speakers

PERFORMANCE

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB M.2 NVMe SSD
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard withintegrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
212 LB / 96 KG
Ship Weight
420 LBS / 190 KG
With Travel Case

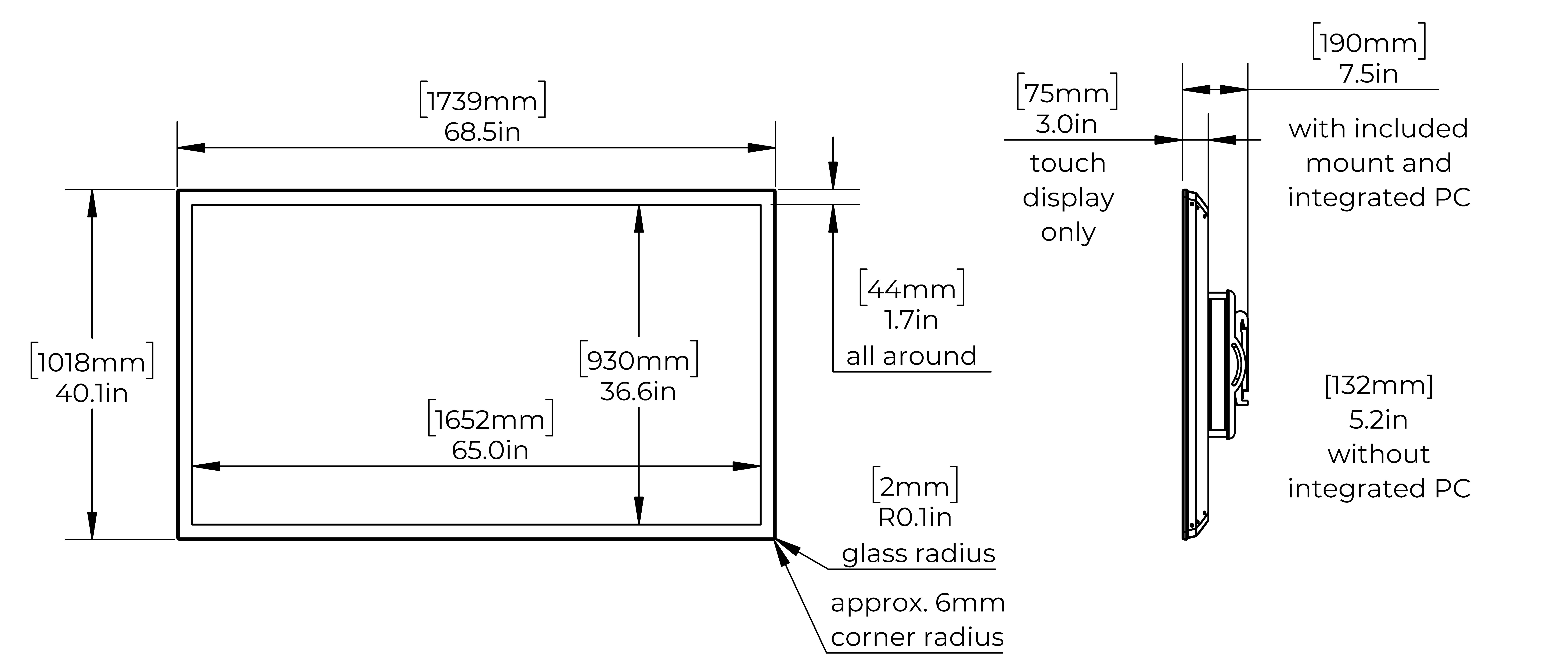

Interactive Display
  • 8K (7,680 x 4,320) LG QNED mini LED display
  • 75” diagonal, strengthened, anti-stiction, 5mm glass surface
  • Displax projected capacitive touch sensor
  • ±5ms touch response time
  • 40 touch points with palm rejection
  • 500 nits luminance
  • Native contrast ratio 1100:1
  • Wall-mounting hardware rated for 280 lbs
Optional Integrated System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Two 10W integrated speakers

PERFORMANCE

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB M.2 NVMe SSD
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
232 LBS / 105 KG
Ship Weight
440 LBS / 200 KG
With Travel Case
Interactive Display
  • 4K UHD (3840x2160) LG commercial display rated 24/7
  • 86” diagonal, strengthened, anti-stiction, 6mm glass surface
  • Zytronic projected capacitive touch sensor
  • ±5ms touch response time
  • 40 touch points with palm rejection
  • 500 nits luminance
  • Native contrast ratio 1200:1
  • Wall-mounting hardware rated for 280 lbs
Optional Integrated Computer System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Two 10W integrated speakers

STANDARD

  • Intel 15th Gen Core Ultra 5 245K processor
  • NVIDIA RTX A2000 16GB Ada Generation graphics card
  • 16GB DDR5 RAM
  • 256GB M.2 NVMe SSD

PERFORMANCE

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB M.2 NVMe SSD
Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Weight
198 LBS / 90 KG
Ship Weight
406 LBS / 184 KG
With Travel Case
Interactive Display
  • (2) 49” 4K UHD (3840x2160) LG commercial display rated 24/7
  • 89” diagonal, strengthened, anti-stiction, 6mm glass surface
  • Zytronic projected capacitive touch sensor
  • ±5ms touch response time
  • 40 touch points with palm rejection
  • 500 nits luminance
  • Native contrast ratio 1100:1
  • (2) Wall-mounting hardware rated for 280 lbs
Optional Integrated System
  • Single push-button power
  • Custom lockable enclosure
  • Windows 11 Professional
  • Universal 110-240V power system
  • Two 10W integrated speakers

PERFORMANCE

  • Intel 15th Gen Core Ultra 7 265K processor
  • NVIDIA RTX 4000 20GB Ada Generation graphics card
  • 32GB DDR5 RAM
  • Dual 256GB M.2 NVMe SSD

‍

Connectivity
  • TPM/TPP compatible for secure environments
  • WiFi 802.11 a/b/g/n/ac, Ethernet, Bluetooth 5.0
  • Wireless keyboard with integrated trackpad
  • Direct access via USB ports
  • Audio output via 1/8” audio jack
  • HDMI output (PC)
  • RFID (optional)
  • Communication hardware can be removed upon request for secure environments
Photos show standard and in some cases custom configurations. Contact our sales group for more information.
description
Download Spec Sheet
south
task
Download CUT Sheet
south
view_in_ar
DOWNLOAD 3D MODELS
south
Contact Us For Pricing
east
description
Download Spec Sheet
south
Contact Us For Pricing
east
Talk to us.
Get in touch →

Our Studio

2469 Corrales Road
Building C
Corrales, NM 87048

Support

support@ideum.comideum.com/support(505) 792-1110 ext.2

Company

JobsNewsletterPrivacy Policy
Rentals

Connect
